Wood Surface Grain WPC Hollow Floor

Wood Surface Grain WPC Hollow Floor

Products Description Colors Product Advantage Product Application Products Description Ensure good drainage. for this reason lay the substructure with a slight gradient of 1% to 15% away from thehouse, laidlengthwise. Keep the joist at least 10mm from the walls or other obstacles to allow for...
Send Inquiry
Description
Technical Parameters
Products Description



Name WPC decking
Material WPC
Size 140*25mm
Color Maple,teake,IPE,charcoal black,smoke grey,stone grey,OAK,dark teak,walunt
Surface Groove, Sanding, Embossing, 3D Embossing
Installation Quick installation
Packing Carton + wooden pallet + corner protection+metal strap
Service life 15-25 years,Dimensional Stability
Application Garden,seaside wooden footpath, Swimming pool, park, dock, Lawn
Maintenance Requires no painting, no glue, low maintenance.



20240613142333



Colors



20240613143529

Product Advantage

20240613144452

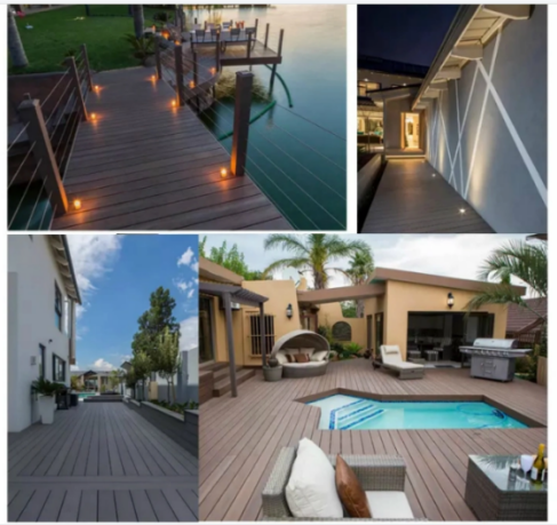

Product Application

20240613144849

Products Description





20240613145023

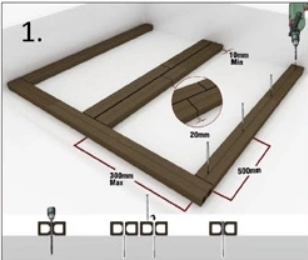

Ensure good drainage. for this reason lay the substructure with a slight gradient of 1% to 15% away from thehouse, laidlengthwise. Keep the joist at least 10mm from the walls or other obstacles to allow for expansion ofthe WPC products.



Please keep the distance of two joists at maximum 30cm between centers complete flat or slightly slopped concreteground Then we come to the step of installing supporting joist.

20240613145203



WPC decking offers starting clip / starters for the first deck board during installation.



For this, firstly fix the entire starting clip on the joist on line, and then push the first wpc decking board to the starting clip to fix Important: when fixing the starting clips or the connecting clips,pre-drilling with a 2.5mm bit is necessary to prevent cracking or breaking the sub structure because WPC products has high

density which does not allow directly nail or screw.


20240613145725



To be affirmed the joist smooth surface with no bump, before installing the WPC decking As shown in the figure, use the clips.



The expansion joint gap between two panels is affected by the natural temperature and the length of each panel.

20240613150019



Fixed the L corner with screws to complete the installation.



The distance between the fixing screws have to be maximum 30cm.The first piece WPC deck fixation, use the screw 45 degrees oblique.



drilled into the WPC deck and joist.Cutting the L-corner to 45 degrees and stitching at the coner of the terrace decking

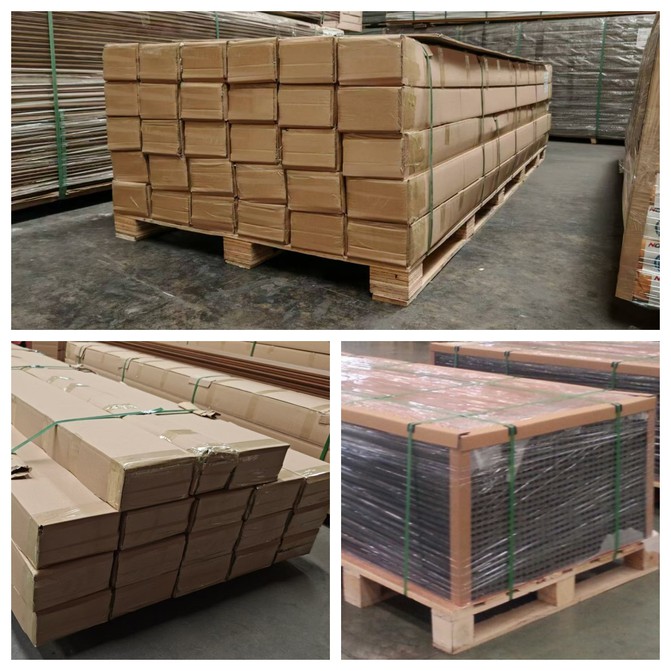

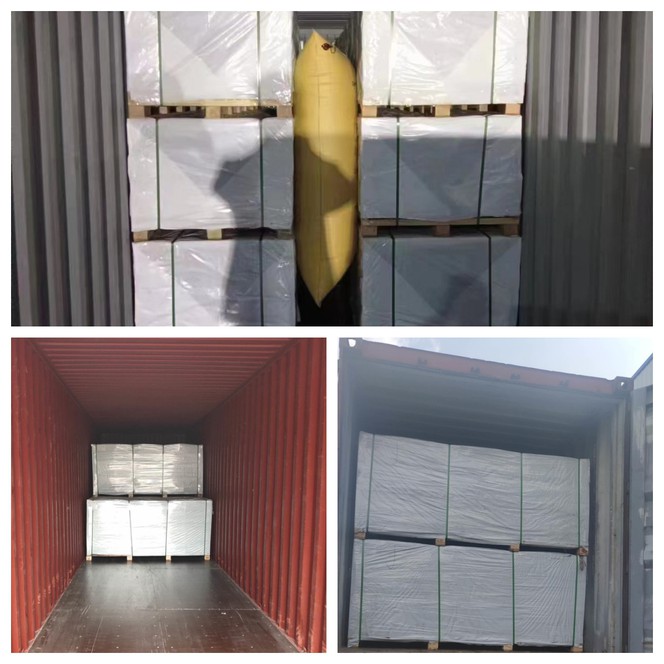

Packaging and shipping



11

3

FAQ



Q: Are you a factory or trading company?
A: We are manufacturer and trading company.



Q: Where is your company and factory located? How can I visit you?

A: Our company is located in Qingdao City, Shandong Province. It takes about 1 hour to drive from Qingdao Jiaodong Airport to our company. Warmly welcome customers at home and abroad to visit us!



Q: What is the MOQ?

A: Usually our MOQ is 600 meters. For trial orders, we can negotiate.



Q:What is the length for the decking?

A: Our common length is 2.2m, 2.9m, We also provide customized length.



Q: How is the packing of the WPC?

A: We use pallets, containers for easy loading structure. The pallet will be covered with plastic film and tightened with straps. We can also customize packaging.



Why choose us?

WPS1

The company is located in Qingdao, a beautiful seaside city. The factory covers an area of ​​20,000 square meters, has 10 wood-plastic production lines, and has an annual output of more than 7,000 tons.
